Xcelsus 12″ Solidus Series
Technical data ATTRIBUTE VALUE Size of base element 12″ Power endurance RMS 850W Impact resistance MAX 1250W Frequency range 20-500hz Impedance 2×4 Ohms FS 32.018Hz QES 0.567 QMS 5,137 QTS 0.511 Vase 55.758L Sensitivity 93dB BL 10,872 CMS 148.210u M/N MMS 166.715g Installation depth 180 mm
XCELSUS AUDIO PRIMUM XP6.2
Specifications Woofer size 16.5 cm (6.5″) Tweeter 20mm pivoting textile dome tweeter Power handling capacity 60 W RMS / 90 W max, 180 Watt peak power Impedance 4 ohms Frequency range 55 – 20,000 Hz Crossover point (Hz) 5500 Hz Sensitivity 89 dB (1W/1m) Outer diameter of woofer 165mm (6.5″)...
XCELSUS AUDIO PRIMUM XP6.2B
Woofer size 16.5 cm (6.5″) Tweeter 25 mm soft textile dome tweeter Power handling capacity 80 W RMS / 120 W max, 200 Watt peak power Impedance 4 ohms Frequency range 50 – 20,000 Hz Crossover point (Hz) 5500 Hz Sensitivity 88 dB (1W/1m) Outer diameter of woofer 165mm (6.5″)...
XCELSUS AUDIO PRIMUM XP620
Specifications Tweeter Dual 16 mm Mylar (0.63″) with neo magnet Woofer size 16.5 cm (6.5″) Power handling capacity 50 W RMS / 80 W max Impedance 4 ohms Frequency range 50 – 20,000 Hz Sensitivity 92 dB (1W/1m) Crossover MXP Capacitor with 6 dB slope Outer diameter of...
XCELSUS AUDIO PRIMUM XP694
Specifications Woofer size 6″ x 9″ (165 x 236 mm Tweeters 2 x 25 mm (1″) tweeters Power handling capacity 80 W RMS / 120 W max / 200 W peak power Impedance 4 ohms Frequency range 50 – 20,000 Hz Sensitivity 89.8 dB (1W/1m) Crossover External filter with 6...

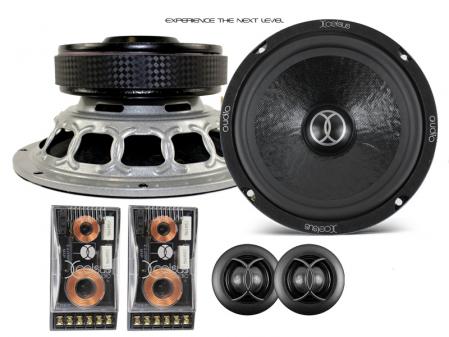

XCELSUS AUDIO ULTRA XU6.2Ci
echnical data ATTRIBUTE VALUE Size of midbass 6.5″ Treble size 28mm Power endurance RMS 120W RMS Impact resistance MAX 200W Max Frequency range 50-20000Hz Impedance 4 Ohms Sensitivity 88.9dB Sharing frequency 4500 Hz Treble type Soft dome Installation depth 75mm Speaker grilles Included Mounting hole 140mm
XCELSUS AUDIO ULTRA XU6.2i
Technical data ATTRIBUTE VALUE Size of midbass 6.5″ Treble size 28mm Power endurance RMS 120W RMS Impact resistance MAX 200W Max Frequency range 30-20,000Hz Impedance 4 Ohms Sensitivity 86dB Sharing frequency 4500 Hz Treble type Textile dome Installation depth 63mm Speaker grilles Included Mounting hole 140mm
Xcelsus Competition Crossover XXX2
ompetition crossover for professional audio installations. Sold in pairs. Crossover specification: Phase shift technology 2-way passive design Copper-wound induction coils “Competition Grade” components 50-250 Watts
Xcelsus Competition Crossover XXX3
Competition crossover for professional audio installations. Sold in pairs. Crossover specification: Phase shift technology 3-way passive design Copper-wound induction coils “Competition Grade” components 50-250 Watts
Xcelsus Definio 4
SPECIFICATIONS Number of channels 4 Amplifier class Full Range Digital Power at 4 Ohm (RMS) 105 watts Power at 2 Ohm (RMS) 165 watts Power at 4 Ohm (RMS) bridged 320 watts Signal to noise ratio, A-weighted 90 dB Damping factor >100 THD @ 5W, 1 kHz <0,02% Frequency...
Xcelsus Magma 220.4
ATTRIBUTE VALUE Number of channels 4 pcs Award 3995.0000 Amplifier class A/B Power in 2 ohms RMS 4x300W rms Power in 4 ohm bridged RMS 2x600W rms Power in 4 ohms RMS 4x220W rms Frequency range 10 Hz – 35 kHz High pass filter 15-4000 Hz Low pass filter 50-4000...
Xcelsus Magma 2200.1D
IBUTEVALUE Number of channels 1 pc Award 3995.0000 Amplifier class D Maximum power 4400W Power in 1 ohm RMS 1x2200W Power in 2 ohms RMS 1x1400W Power in 4 ohms RMS 1x900W High pass filter Yes 20-4000Hz Low pass filter Yes 40-4000Hz Subsonic filter Yes Bass boost Yes Bass remote...
XCELSUS MAGMA 310.2
DESCRIPTION DESCRIPTION TECHNICAL DATA ATTRIBUTE VALUE Number of channels 2 ch Award 3995.0000 Amplifier class A/B Power in 2 ohms RMS 350W rms Power in 4 ohm bridged RMS 700W rms Power in 4 ohms RMS 220W rms Frequency range 10 Hz – 35 kHz High pass filter 15-500 Hz...
Xcelsus Magnifico 1
ATTRIBUTE VALUE Number of channels 1 pc Award 2995.0000 Amplifier class Class D Power in 1 ohm RMS 1000W Power in 2 ohms RMS 600W Power in 4 ohms RMS 300W High pass filter Yes Low pass filter Yes Operating voltage 11-16V High-level input Yes Recommended power and ground cable...
Xcelsus Magnifico 2
ATTRIBUTE VALUE Number of channels 2 pcs Award 3495.0000 Amplifier class AB Power in 2 ohms RMS 2x320W Power in 4 ohm bridged RMS 1x640W Power in 4 ohms RMS 2x170W High pass filter Yes Low pass filter Yes High-level input Yes Recommended power and ground cable 20mm2 THD 0.00%...
Xcelsus Magnifico 4
DESCRIPTION DESCRIPTION TECHNICAL DATA ATTRIBUTE VALUE Number of channels 4 pcs Award 3495.0000 Amplifier class AB Power in 4 ohms RMS 4x88W High pass filter Yes Low pass filter Yes High-level input Yes Recommended power and ground cable 20mm2 THD 0.00% Low level output No Dimensions 320x135x55mm
Xcelsus XAS 10″
Technical data ATTRIBUTE VALUE Size of base element 10″ Power endurance RMS 600W Impact resistance MAX 1200W Frequency range 35-500Hz Impedance 2×4 ohms FS 35.5hz RE 3.6 QES 0.36 QMS 2.04 QTS 0.31 Vase 29.5L Voice coil size 3″ Magnet size 165x25mm Sensitivity 87.5dB/1W CMS 183,371 MMS 108g SD 336cm2...
Xcelsus XAS 12″
Technical data ATTRIBUTE VALUE Size of base element 12″ Power endurance RMS 600W Impact resistance MAX 1200W Frequency range 25-500hz Impedance 2×4 ohms FS 30.5 RE 1.6 QES 0.329 QMS 1.53 QTS 0.27 Vase 58.2 Voice coil size 3″ Magnet size 175x25mm Sensitivity 89dB/1w CMS 145.5 MMS 187g SD 530cm2...
Xcelsus XPLM6
Technical data ATTRIBUTE VALUE Size of midbass 6.5″ Power endurance RMS 125W Impact resistance MAX 300W Frequency range 70-10000hz Impedance 4 ohms Sensitivity 93dB/1w Installation depth 71mm Speaker grilles No Mounting hole 144mm
Xcelsus XPLT28W
ATTRIBUTE VALUE Treble size 28mm Power endurance RMS 100w Frequency range 3-20khz Impedance 4 ohms Sensitivity 98dB/1w Outer diameter 90mm Installation depth 45mm Mounting hole 71mm
Xcelsus XUSM6
Technical data ATTRIBUTE VALUE Size of midbass 6.5″ Power endurance RMS 125W Impact resistance MAX 300W Frequency range 80-8000Hz Impedance 4 ohms Magnet size 130mm Sensitivity 94dB/1W Outer diameter midbase 175mm Installation depth 71mm Speaker grilles Included Mounting hole 144mm
Xcelsus XUSM8
Technical data ATTRIBUTE VALUE Size of midbass 8″ Power endurance RMS 150W Impact resistance MAX 300W Frequency range 70-6000Hz Impedance 4 ohms Magnet size 140mm Sensitivity 95dB/1W Outer diameter midbase 216mm Installation depth 80mm Speaker grilles Included Mounting hole 186mm
Xcelsus XUST30W
Technical data ATTRIBUTE VALUE Treble size 30mm Power endurance RMS 50W Impact resistance MAX 100W Frequency range 3000-22000Hz Impedance 4 ohms Sensitivity 98dB Outer diameter 90mm Installation depth 45mm Mounting hole 70mm
Xcelsus XXM325 3″
Technical data ATTRIBUTE VALUE Size of midbass 3″ Power endurance RMS 50W Impact resistance MAX 200W Frequency range 100-10000hz Impedance 4 ohms Magnet size 35mm neo Sensitivity 84dB/1w Outer diameter midbase 90mm Installation depth 46mm Speaker grilles Yes Mounting hole 72mm
Xcelsus XXT30
Technical data ATTRIBUTE VALUE Treble size 30mm Power endurance RMS 30W FS – resonant frequency 1000-23000hz
Xcelsus XXT30W
All experts agree that it is easier to accept a bad subwoofer than a bad Tweeter. This tweeter never has bad sound. It can be pushed to a very high volume and still maintain a smooth, sweet sound. We recommend this tweeter in the first case. It is perfect for a 2-way system with...
XXM 650 6.5″
Technical data ATTRIBUTE VALUE Size of base element 6.5″ Power endurance RMS 150W Frequency range 55-6000Hz Impedance 4 ohms FS 57hz QES 0.627 QMS 10.39 QTS 0.591 Vase 11.9L Voice coil size 1.5 Outer diameter 165mm Mounting hole 139mm
XXS10 10
ATTRIBUTE VALUE Size of base element 10″ Impedance 2x2Ohm FS 36.585Hz QES 0.761 QMS 3.107 QTS 0.611 Vase 22,430L MMS 130.517g
